JBL Control-25

  • 80 Hz to 16 kHz frequency range (-10 dB)

  • 150 watts continuous program power capacity

  • 88 dB sensitivity (1W/1m)

  • 8 ohms nominal impedance

  • 3 kHz crossover frequency

  • High-Impact Polystyrene (HIPS) enclosure

  • Spring-loaded input terminals

  • Dimensions (HxWxD):  236 mm x 188 mm x 148 mm (9.3 in x 7.4 in x 5.8 in)

  • Net Weight:  2.3 kg (5 lb)



      JBL Control-28

  • 60 Hz to 16 kHz frequency range (-10 dB)

  • 175 watts continuous program power capacity

  • 92 dB sensitivity (1W/1m)

  • 8 ohms nominal impedance

  • 2.8 kHz crossover frequency

  • High-Impact Polystyrene (HIPS) enclosure

  • Spring-loaded input terminals

  • Dimensions (HxWxD):  380 mm x 280 mm x 220 mm (15 in x 11 in x 8.6in)

  • Net Weight:  5.5 kg (12 lb)









JBL Array Series 4890, 4891



Frequency Response: 70Hz - 18khz (+/- 3dB)

Recommended Amplifier Power

High Frequency: 300 W at 8 Ohms
Low Frequency: 600 W at 8 Ohms

Sensitivity: 98 dB (1W, 1m

Nominal Impedance: Low Frequency: 8 Ohms

Nominal Coverage:

4890: 60º Horizontal, 40º Vertical or 40° Horizontal, 60° Vertical
4891: 60º Horizontal, 40º Vertical

Power Rating

Low Frequency Transducer:600 W AES, 50 Hz to 500 Hz 2400W peak
High Frequency Transducer: 75 W AES, 1kHz to 10kHz, 300 W peak

Nominal Diameter

Low Frequency Transducer: 355 mm (14”)

High Frequency Horn:Type: Optimized Aperture Flat Front Bi-Radial, die cast aluminium

Enclosure

Flying System: None
Finish: Black Textured paint
Grille: 16ga. perforated steel, foam backed

Dimensions (HxWxD)

4890: 376 x 686 x 376 mm, (14.8 x 27 x 14.8 in)
4891: 470 x 394 x 599 mm,
(14.8 x 27 x 14.8 in)















Turbosound Impact-80



Compact passive 2-way speaker with a 8" LF driver and a 1/2" HF tweeter in a vented, rotationally moulded HDPE enclosure. Wide range of decor matching colours available including TurboBlue, black, white and grey. Fitted with internal fixings for use with optional Turbosound mounting brackets in permanent installations. Speakon connectors.

  • 250 W program

  • 118 dB maximum SPL (peak)

  • 80 h x 80 v dispersion

  • Dimension (HxWxD): 480x295x250 mm

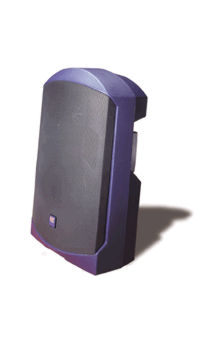

Turbosound Impact-121



Passive 2-way full range speaker with a 12" LF driver and a 1" HF compression driver in a rotationally moulded enclosure. Wide range of décor matching colour options available. Fitted with internal fixings for use with optional WB-100 or CB-100 Turbosound mounting brackets in permanent installations. Speakon NL4MP connectors.

  • 400 W program

  • 126 dB maximum SPL (peak)

  • 70 h x 40 v dispersion

  • Dimension (HxWxD): 700x410x356 mm
