AV Amps

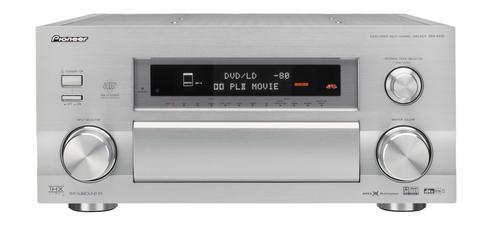

PIONEER VSA-AX10

Power Output
Stereo 2 x 170 W(6 Ohm, 1 kHZ THD 1%) Surround Front 2 x 170 W (6 Ohm, 1 kHZ THD 1%)
Centre 170 W(6 Ohm, 1 kHZ THD 1%)    Rear 2 x 170 W (6 Ohm, 1 kHZ THD 1%)
Surround Back 2 x 170 W (6 Ohm, DIN 1 kHZ THD 1%)

Terminals
Multi-Channel Input: 7.1 ch     RF Input for Dolby Digital (Demodulator): Yes
Digital Input: 8 (assign)       Digital Coaxial input: 3    Digital Optical input 5 (Front-in incl.)

Digital Output (Optical) 2     Audio/Video Inputs: 5 A / 7 AV      Audio/Video Output 2A / 3AV + 2V
Phono Input: Yes     S-Video Input/Output: 7/4    Component Video Input/Output: 3/1 (assign)
Preamp Output: Yes, All (7,1 ch)   A/V Input on Front: Yes    System Remote Terminal:Yes(In/Out)
Speaker A/B: Versatile    Large Speaker Terminals: Yes (All)

Miscellaneous
Dimensions (W x H x D) 440 x 203 x 472 mm
Weight 29,3 kg

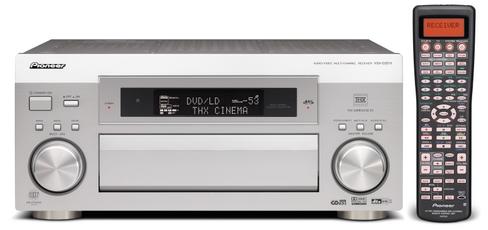

PIONEER VSX-D2011-S

For an all-round, breathtaking sound experience that will take you into the future choose the VSX-D2011-S. At the heart of the high-quality sound production lies the Advanced Direct Energy MOS FET 7-channel equal power amplification (100 W x 7 DIN). The sound is enhanced by the receiver’s design, which features a double layered chassis and 3-D Space Frame Construction, as well as 192 kHz/24-bit DACs for top quality reproduction. Clear precision sounds are part of Pioneer’s Advanced Multi-channel Stereophonic Philosophy. The Multi-Channel Acoustic Calibration (MCACC)system with microphone monitors your sound environment and automatically adjusts your system to reach the perfect tonal level. To bring the fullest expression to the sound, the VSX-D2011-S also features THX Select, AIR Studios fine-tuning, and an Audio Scaler, which enhances the signals from any digital source to create a smoother, more natural sound. Last but not least: this versatile receiver can handle 96/24 DTS, THX Surround EX/Dolby Digital EX, DTS-ES Discrete 6.1, DTS-NEO:6 and Pro Logic II formats. On top, the Surround modes include Virtual Surround Back. It comes with multiple connectivity options and the 7.1 multi-channel input means that it ’s ready for future surround sound formats. And with the learning remote control unit with large LCD, the receiver is easy handled. For ‘regular ’ 5.1-channel set-up, VSX-D2011-S can be configured to bi-amp the front left and right speakers, making it the perfect choice for audiophiles and cinephiles alike. The VSX-D2011-S has one USB terminal for connection with PC audio sources.

PIONEER VSX-D1011-S

Get ready for the sounds of the future with this masterful A/V receiver, built according to Pioneer’s Advanced Multi-channel Stereophonic Philosophy. The VSX-D1011 makes sounds come alive. It features an Advanced Direct Energy MOS FET exclusive to Pioneer for all 7-channel amplifiers with a power output of 100 W. The advanced 3-D Space frame construction, designed to enhance high-fidelity audio, includes an isolated chamber construction. With the 192 kHz/24-bit digital-to-audio converter, you will experience an exceptionally pure top sound quality. You’ll hear every tiny nuance, thanks to the newly developed ‘manual’ Multi-Channel Acoustic Calibration (MCACC)system. The A/V receivers are compatible with the latest surround sound format, 96/24 DTS, as well as THX Surround EX/Dolby Digital EX, DTS-ES Discrete, DTS-NEO:6 and Pro Logic II. This time we ’ve included the Virtual Surround Back surround mode to give you an even more impressive sound experience without having to add more speakers. The newly designed remote control unit is ergonomical and easy-to-use. The 7.1 multi-channel input means you are set for future surround sound formats. Sit back and delight in the performance.

DENON AVC-A1SR

The AVC-A1SR is another tour-de-force from Denon, building on the A1SE and adding an astonishing range of performance upgrades and advanced videophile features. The new Hammerhead SHARCs deliver the highest processing power ever offered in any AV component. Highlights include:

Every decoding format known (as of today) including MLP & DVD-Audio

16 x Burr-Brown 24-bit, 192kHz audio DACs (the worlds best)

First commercial product with DENON 24/192 Digital Link from Denon DVD Players (DVD-A1)

First generally available Dolby Headphone

First with the latest Analog Devices Hammerhead SHARC 32-bit processors

Open Architecture for future digital formats and interfaces

69 sets of inputs & outputs

THX Ultra 2 Certified with 7 x 170 watts

Variable subwoofer cross-over switching

100 mHz high-bandwidth video switching

Upgradable digital bay

RS232C for Crestron etc plus multi-zone facilities

2 Sets of 8-Channel External Analog Inputs with A/D Conversion and DSP Processing

8 Channel external Digital inputs

Pure Quiet Analogue Path

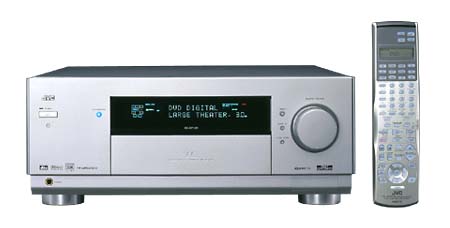

JVC RX-DP10R

Stereo: 130W x 2, 8 ohms, 1kHz (DIN); Surround: 130W x 7, 8 ohms at 1kHz, with 0.8% THD

Zero interference concept for analogue construction

THX Surround EX decoder built-in with 7-channel amplifier

CC Converter (Compression Compensative Converter) for all 7.1 channels

192kHz/24-bit P.E.M. D.D. Converter for all 7.1 channels

Line Direct for high-fidelity playback

LCD (Back-light) learning multi-brand A/V-DBS-CATV remote control

4-ohms driving capability

On-Screen Display

TEXT COMPU LINK

DSP functions:

Dolby Digital/DTS surround decoder

Dolby Pro Logic in full digital processing

Digital Acoustics Processor (DAP) for multi-channel digital sources and 2-channel sources (12 presets each)

3D-PHONIC

Headphone mode

All-channel stereo mode

Midnight mode

Parametric EQ (Bass: 63-1kHz, 1/3 oct. steps; Mid: 250-4kHz, 1/3 oct. steps; Treble: 1k-16kHz, 1/3 oct. steps; ±6dB, 0.5dB steps)

1 manual EQ setting for each source

One Touch Operation

Screw-type speaker terminals for all channels

Independent CD-R in/out

5 A/V inputs, 4 audio inputs

1 coaxial and 4 optical digital inputs with assignable function

1 optical digital output

S-video inputs (5)/outputs (3)

Video terminals on front (gold-plated)

RDS tuner with EON

30 FM and 15 AM station memory

Enhanced COMPU LINK Control System
